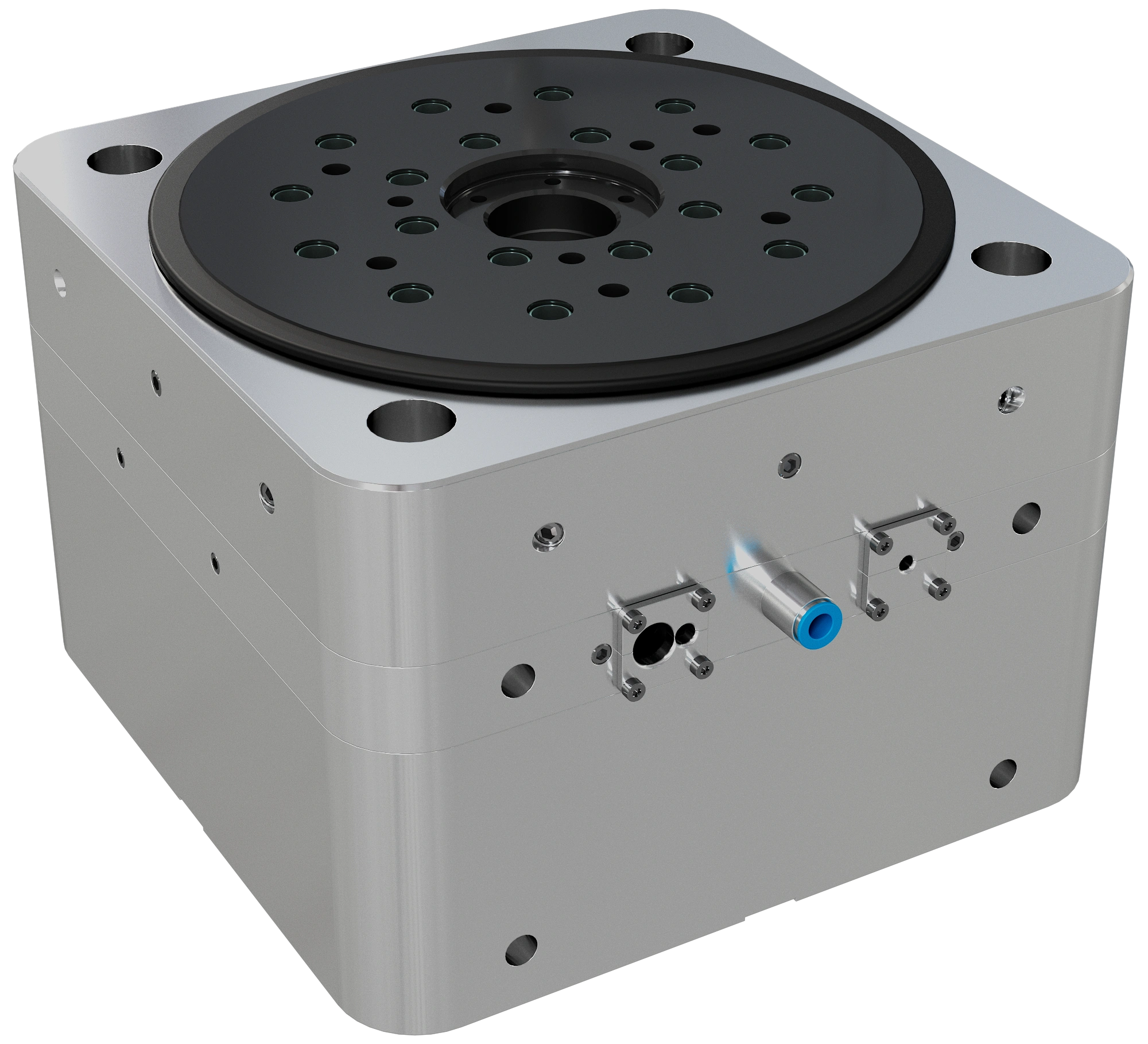

Rotary Table
EZ-0570 | Key Features
- Air Bearing Rotary Table with Direct Drive
- High Load Capacity
- Radial Runout < 0.15 μm
- 1,100 rpm in Standard Version
- 1 Vpp or with Interpolation (5-, 10-, 50-, 100-fold)
Downloads
Product description
Due to its high load capacity (up to 2,200 N axial), the EZ-0570 rotary table is particularly suitable for high- precision positioning of heavy loads of up to 40 kg. Among its various applications, the rotary table is preferably used for measuring tasks with non-contact measuring systems. Equipped with a powerful iron- core torque motor, it can also handle dynamic applications. To further reduce axial and radial error motion, the rotary table can be operated with an ironless motor. The measuring system (Numerik RIK4) features 18,000 lines and can optionally be supplied with interpolation factors of 5, 10, 50 or 100. The rotor is magnetically preloaded and is clamped to the housing when the air supply is switched off, ensuring it remains fixed in position. There are no restrictions regarding the installation orientation. Due to the materials used and the fact that air bearings are generally operated without lubricants, the rotary table is suitable for use in clean rooms.
Applications: High-precision positioning and measuring systems, inspection technology, testing systems, applications with high demands on synchronization and/or repeatability of positioning.
Specifications
Type | Unit | Value |
|---|---|---|
| Turning Range | ||
| Error Motion axial (in the center) | ||
| Error Motion radial (at 20 mm height) | ||
| Axial Runout (along radius 35 mm) | ||
| Repeatability (uncompensated) | ||
| Angular Accuracy (uncompensated) | ||
| Max. Speed1) | ||
Mechanical Data | ||
| Mounting Position | ||
| Length x Width x Height | ||
| Max. Load Capacity axial | ||
| Nominal Load Capacity axial push/pull | ||
| Max. Load Capacity radial | ||
| Nominal Load Capacity radial | ||
| Stiffness axial | ||
| Stiffness radial | ||
| Resistance Against Tilt | ||
| Max. Moment of Tilt | ||
| Moving Mass (rotor) | ||
| Total Mass | ||
| Inertial Moment | ||
| Material | ||
Encoder | ||
| Type | ||
| Lines per Revolution | ||
| Output Signal | ||
| Interpolation Options | ||
Drive | ||
| Type | ||
| Intermediate Circuit Voltage | ||
| Nominal/Peak Torque | ||
| Nominal/Peak Current | ||
Interfaces and Environment | ||
| Supply Pressure | ||
| Air Consumption | ||
| Cable Length | ||
| Clean Room Suitability | ||
Drive Control | ||
| Standard | ||
| High End |
Control
We offer the EZ-0570 with the following drive controllers:
