Linear Axis
EZ-3221 | Key Features
- Mounting Surface Slide 59.5 x 15 mm (l x w)
- Payload up to 500 g
- Without Measuring System
- Without Drive
- High Positioning Accuracy
- Compact Design
- Longer Guide Rails on Request
Downloads
Product description
The linear axis features a stainless steel guide rail and a hard-coated aluminum slide. The slide is preloaded by magnetic force and, aside from a minor Newtonian force, moves virtually without friction. Thanks to friction-free movement and compact design, the axis is ideal for beam guidance. This air-bearing axis is engineered for small to medium strokes lengths and can carry loads of up to approximately 500 g. The axis as shown does not include a drive or measuring system, but it can easily be equipped with a voice coil motor and measuring system. The linear axis can be extended by adding a second, mirror-inverted slide, and the guide rail length is adjustable.
Applications: Beam guidance, positioning of optical components, mirror positioning, AOI (automatic optical inspection) inspection technology, photovoltaic production.
Specifications
Type | Unit | Value |
|---|---|---|
| Stroke 1) | ||
| Vertical/Horizontal Straightness (XTZ/XTY) | ||
Mechanical Data | ||
| Mounting Position | ||
| Dimension Slide Mounting Surface L x W | ||
| Dimension Guide Rail with Slide L x W x H | ||
| Load Capacity vertical (Z) push/pull | ||
| Load Capacity lateral (Y) | ||
| Stiffness | ||
| Moving Mass (slide) | ||
| Total Mass | ||
Encoder | ||
| Type 2) | ||
Drive | ||
| Type 2) | ||
Interfaces and Environment | ||
| Air Consumption | ||
| Supply Pressure | ||
| MTBF | ||
| Limit Switch | ||
| Clean Room Suitability |
1) standard version, other strokes are possible on request
2) additional equipment with a voice coil motor and measuring system is possible on request

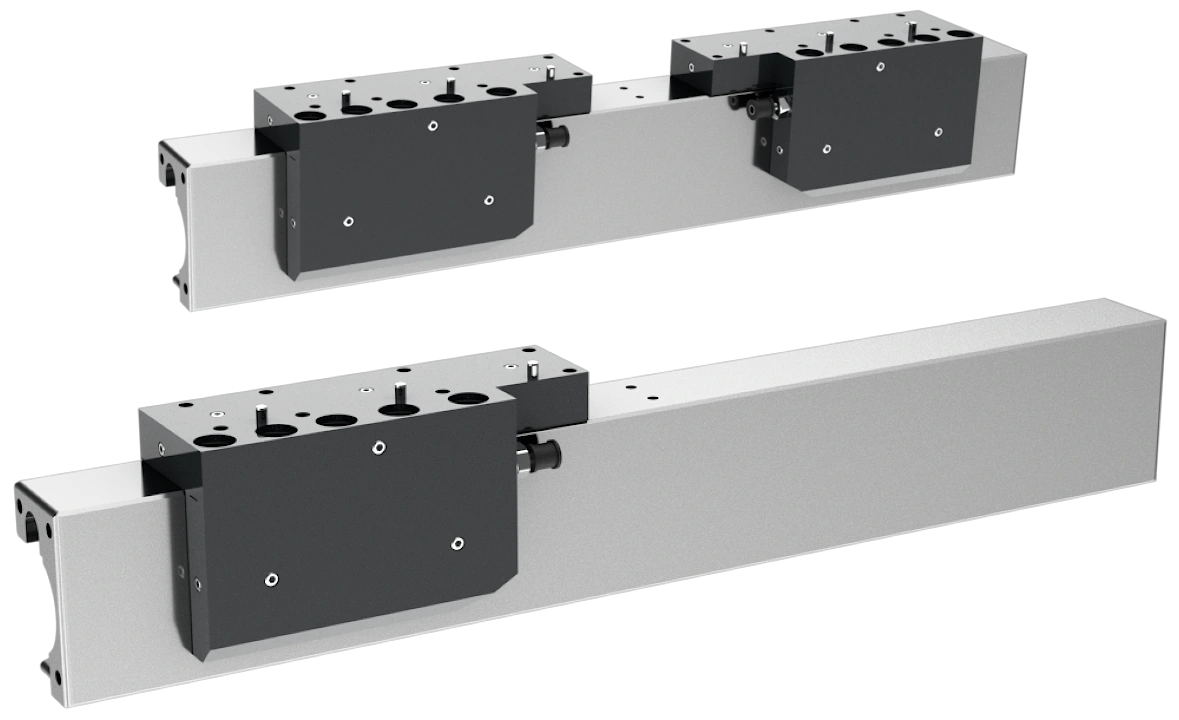

Design example: Axis with 2 air-bearing slides
